無縫帶︱FLEX BELTS

  1. PU同步皮帶︱POLYURETHANE TIMING BELTS
  2. 無縫帶︱FLEX BELTS
齒形 PROFILE︱INCH type

齒形 PROFILE︱INCH type

XL,L,H,XH
INCH TYPE
/

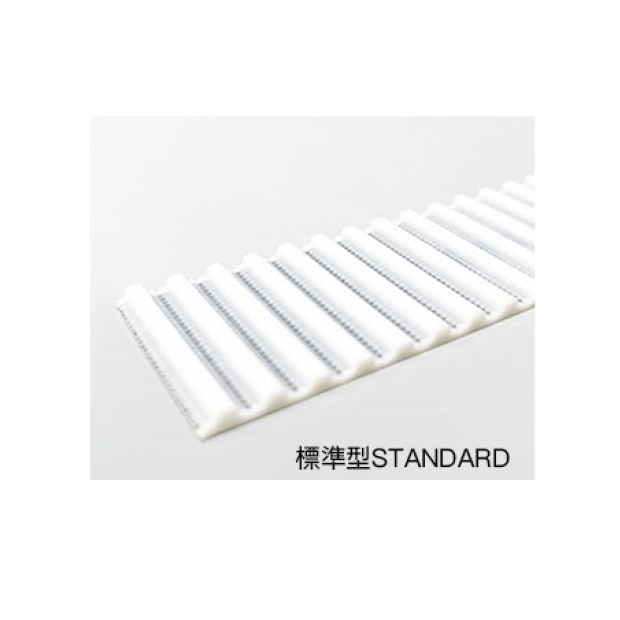

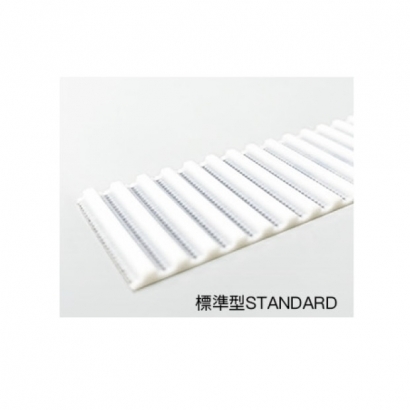

PU STANDARD
/

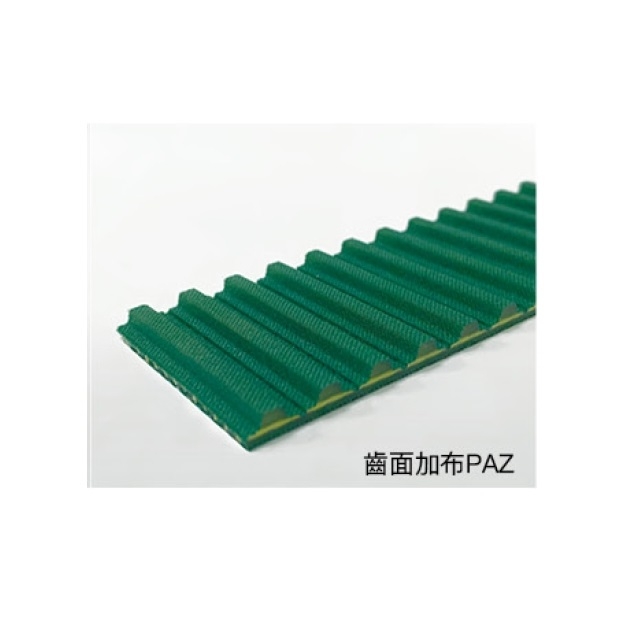

PU PAZ
/

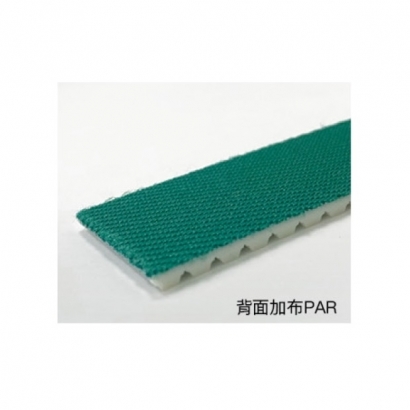

PU PAR
/
  • INCH TYPE
  • PU STANDARD
  • PU PAZ
  • PU PAR
詳細介紹
BELT CHARACTERISTICS

- Truly endless polyurethane timing belt with steel tension cords

- Tooth profile according to UNI/SO 5296

- Mainly used in applications where inch pitch is an advantage

- XL profile transmissible power up to 5 kW

- L profile transmissible power up to 20 kW

- H profile transmissible power up to 30 kW

- XH profile transmissible power up to 100 kW

- L,H profile dual toothing available from 1500 mm

透過手機觀看，請左右滑動觀看
STANDARD

TOOTH
PROFILE		 TOOTH
ANGLE		 WIDTH
TOLERANCE
[mm]		 THICKNESS
TOLERANCE
[mm]
XL 50° ±0.5 ±0.2
L 40° ±0.5 ±0.2
H 40° ±0.5 ±0.2
XH 40° ±1.0 ±0.2


SPECIFICATION

型號

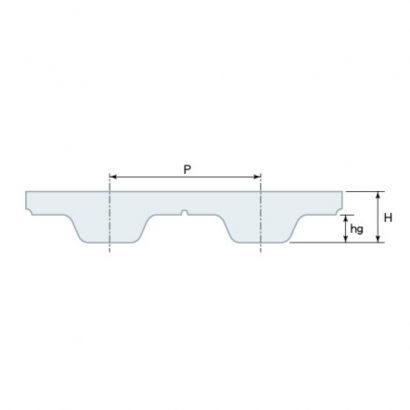

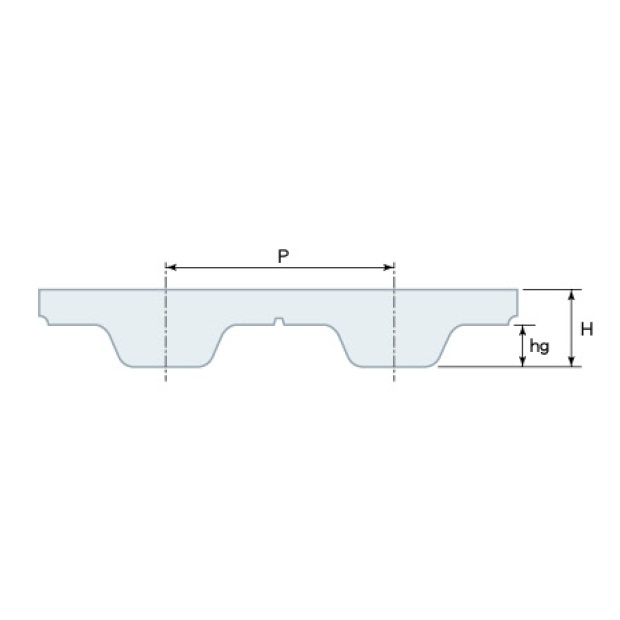

TYPE		 節距
P		 齒高
hg		 總厚
H
XL 5.08
(1/5")		 1.27 2.3
L 9.525
(3/8")		 1.90 3.6
H 12.7
(1/2")		 2.30 4.3
XH 22.225
(7/8")		 6.35 11.2
芯線：STEEL標準,高性能HP,高柔性HF（另可提供ARAMID芳綸芯,不銹鋼芯來滿足客戶需求）＊視實際製造標準為主＊
