BELT CHARACTERISTICS
- Polyurethane timing belt with steel tension cords
- Tooth profile according to ISO 17396
- Tooth profile and dimension are optimised to guarantee uniform load distribution and minimum deformation under load
- High resistance and low stretch steel cords to guarantee high stability and low elongation
- Reduced polygonal effect with reduced drive vibration
- Particularly suitable for linear drives and light power transmission applications with high axial and angular positionin accuracy
- AT5,AT10,AT20 profile double sided tooth construction available
- Negative length tolerance available on request
透過手機觀看，請左右滑動觀看

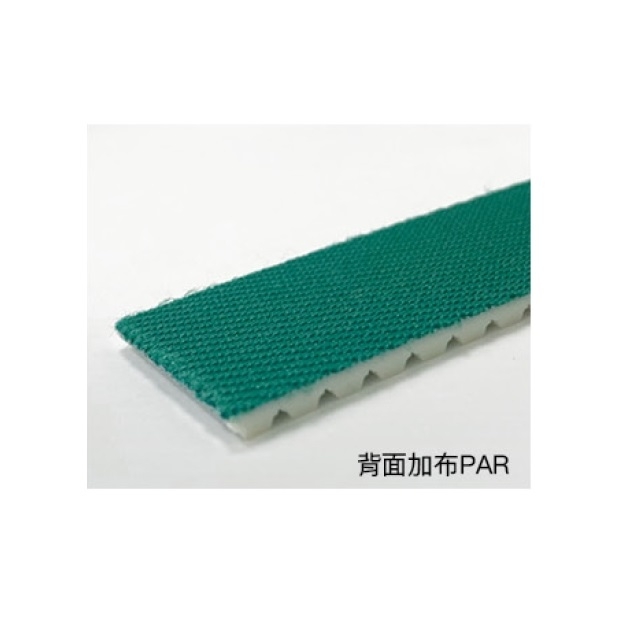

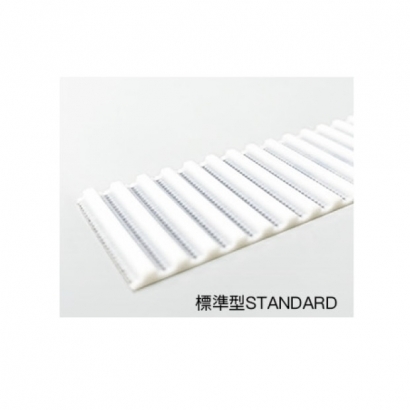

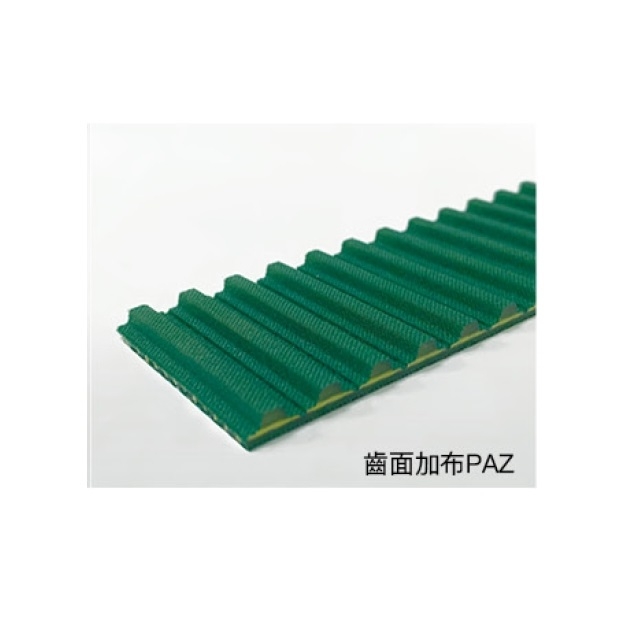

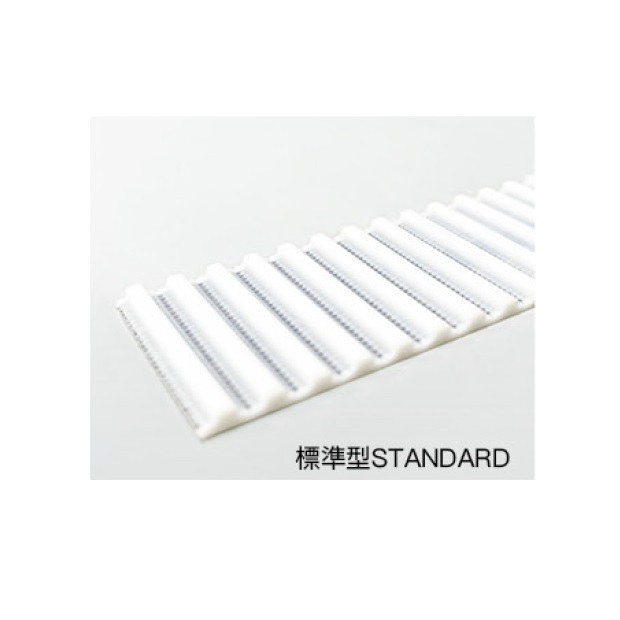

STANDARD
TOOTH
PROFILE |
TOOTH
ANGLE |
WIDTH
TOLERANCE
[mm] |
LENGTH
TOLERANCE
[mm/m] |
THICKNESS
TOLERANCE
[mm] |
| AT3 |
50° |
±0.5 |
±0.5 |
±0.2 |
| AT5 |
50° |
±0.5 |
±0.5 |
±0.2 |
| AT10 |
50° |
±0.5 |
±0.5 |
±0.2 |
| AT20 |
50° |
±0.1 |
±0.5 |
±0.4 |

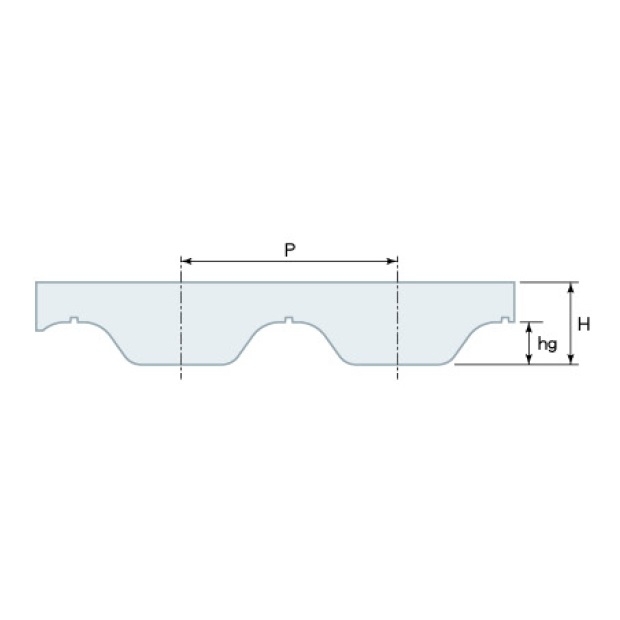

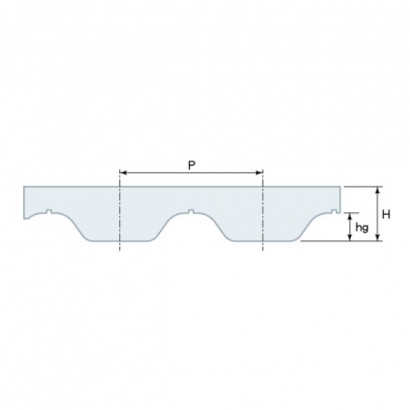

SPECIFICATION
型號
TYPE |
節距
P |
齒高
hg |
總厚
H |
| AT3 |
3 |
1.1 |
1.9 |
| AT5 |
5 |
1.2 |
2.7 |
| AT10 |
10 |
2.5 |
4.5 |
| AT20 |
20 |
5.0 |
8.0 |
芯線：STEEL標準,高性能HP,高柔性HF（另可提供ARAMID芳綸芯,不銹鋼芯來滿足客戶需求）＊視實際製造標準為主＊
