無縫帶︱FLEX BELTS

  1. PU同步皮帶︱POLYURETHANE TIMING BELTS
  2. 無縫帶︱FLEX BELTS
齒形 PROFILE︱T type

齒形 PROFILE︱T type

T5,T10,T20
T TYPE
/

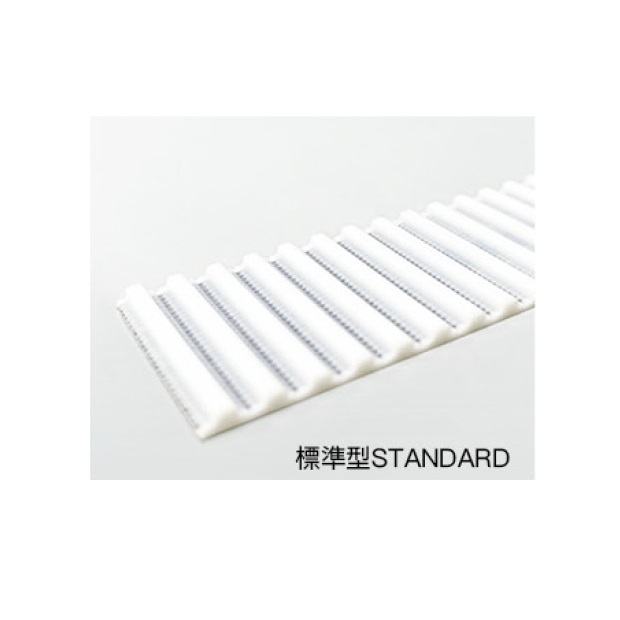

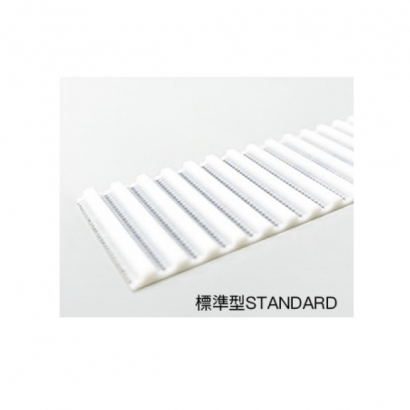

PU STANDARD
/

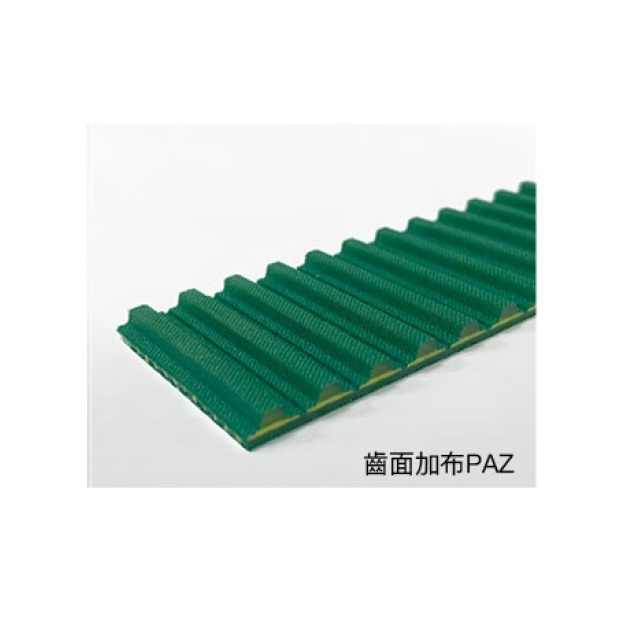

PU PAZ
/

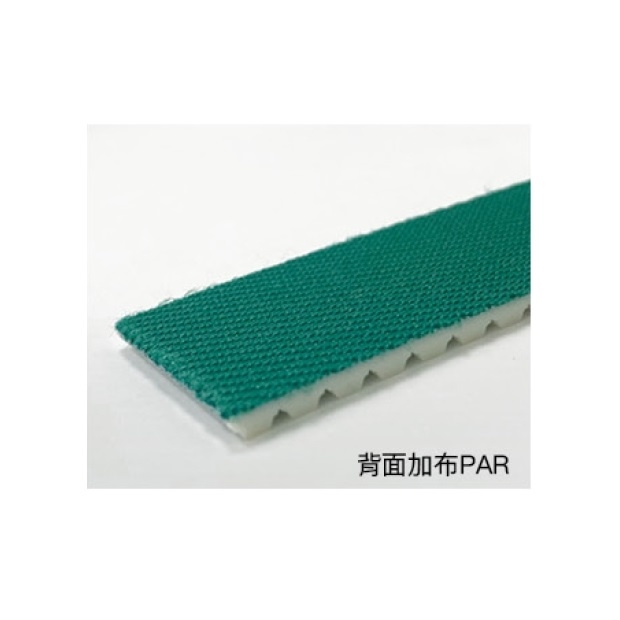

PU PAR
/
  • T TYPE
  • PU STANDARD
  • PU PAZ
  • PU PAR
詳細介紹
BELT CHARACTERISTICS

- Truly endless polyurethane timing belt with steel tension cords

- Tooth profile according to ISO 17396

- Ideal for drives where high belt flexibility is required

- Allows the use of small diameter pulleys

- T5 profile transmissible power up to 5 kW

- T10 profile transmissible power up to 30 kW

- T20 profile transmissible power up to 100 kW

- Dual toothing available from 1500 mm
- T20 profile HPL  cord execution available

透過手機觀看，請左右滑動觀看
STANDARD

TOOTH
PROFILE		 TOOTH
ANGLE		 WIDTH
TOLERANCE
[mm]		 THICKNESS
TOLERANCE
[mm]
T5 40° ±0.5 ±0.2
T10 40° ±0.5 ±0.2
T20 40° ±0.1 ±0.2

SPECIFICATION

型號
TYPE		 節距
P		 齒高
hg		 總厚
H

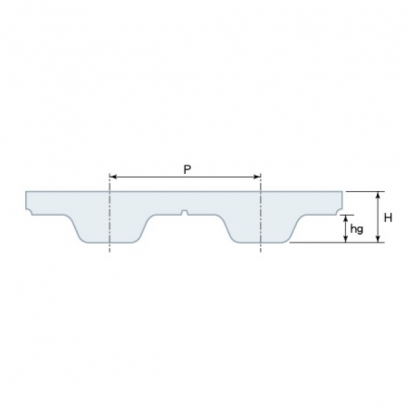

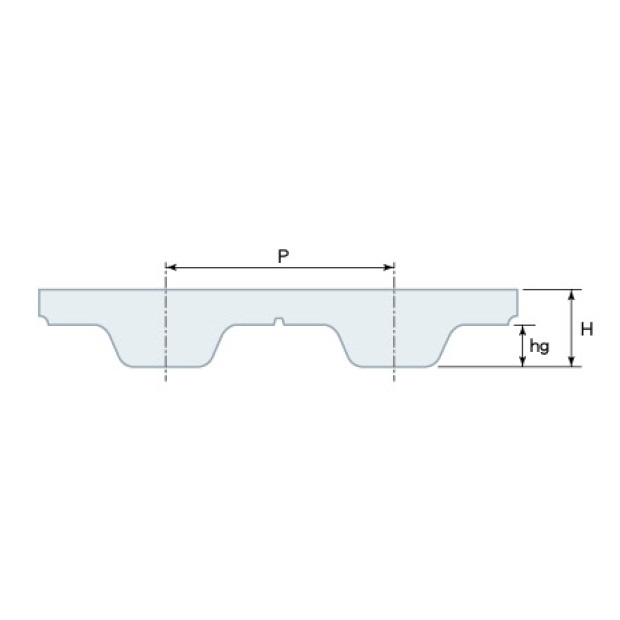

T5 5 1.2 2.2
T10 10 2.5 4.5
T20 20 5.0 4.5
芯線：STEEL標準,高性能HP,高柔性HF（另可提供ARAMID芳綸芯,不銹鋼芯來滿足客戶需求）＊視實際製造標準為主＊
